High-Grade Construction
Multi-Grip Pull-up Bar
Fully Adjustable Articulating Arm
Dual 198lbs Weight Stacks
Premium Aluminum Pulleys

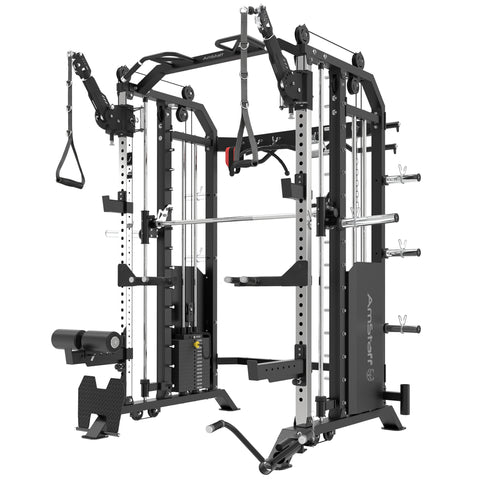

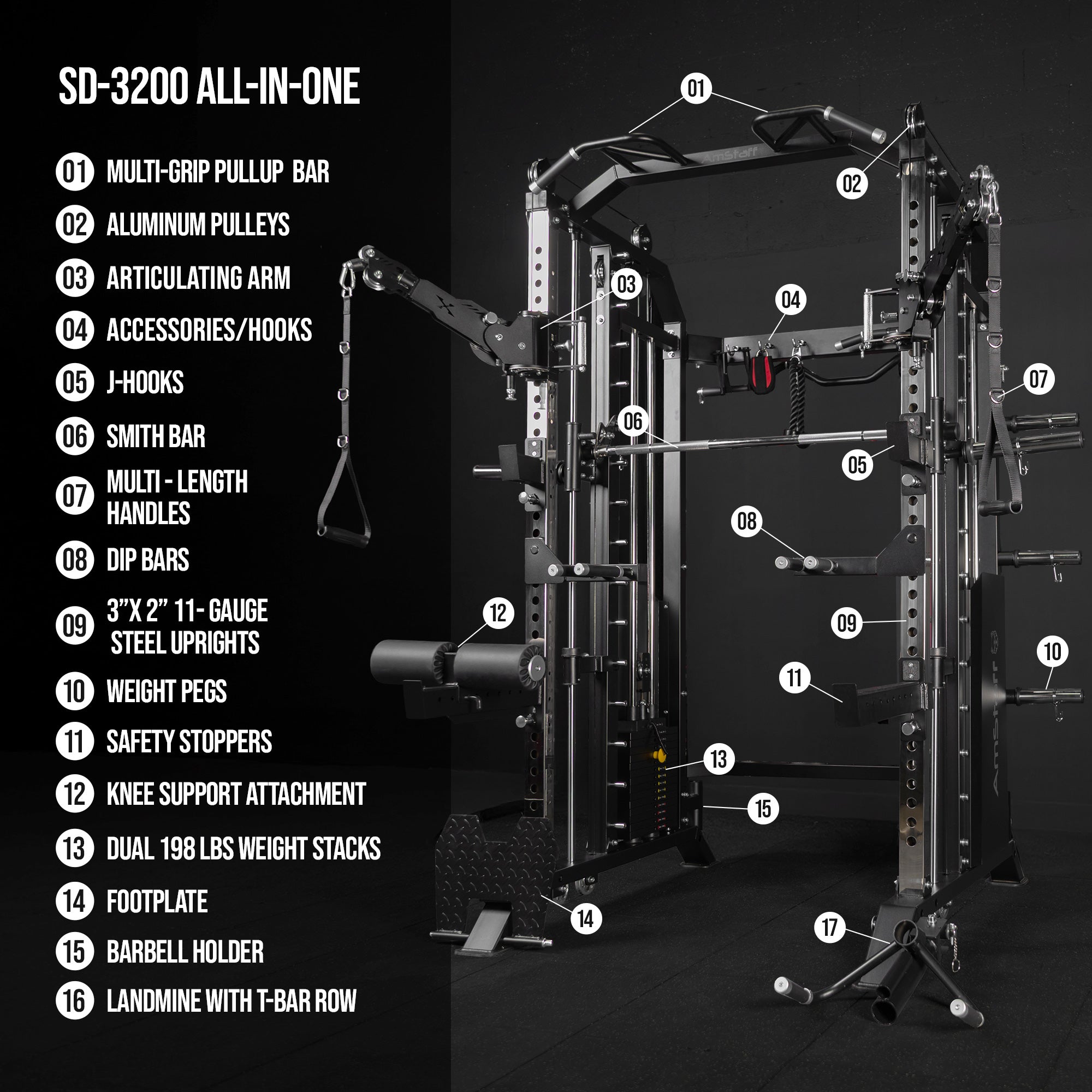

AmStaff Fitness SD-3200 All-In-One Smith Machine
Elevate your training environment with the SD-3200, a commercial-grade all-in-one strength system engineered for maximum versatility, precision, and heavy-duty performance. Built with hard chrome-plated solid guide rods, dual 90 kg (198 lb) selectorized weight stacks, and a Articulating Arm cable system with 360° rotation and 9-position adjustability, the SD-3200 delivers unmatched cable freedom across every angle of training. Complete with a chrome-plated precision Smith track, multi-angle pull-up bar, ABS-padded safety stoppers, and a non-slip diamond-plate footplate, the SD-3200 combines commercial functionality with intelligent engineering — built for serious home gyms, personal training studios, and compact commercial facilities.
Ratio
Le AmStaff SD-3200 est le résultat d'une refonte totale de ce dont un véritable système d'entraînement tout-en-un devrait être capable. Là où les machines conventionnelles verrouillent votre système de câbles dans une trajectoire fixe, le SD-3200 brise entièrement cette limitation avec son bras articulé — un bras de câble à double articulation qui positionne votre système de câbles exactement où vous en avez besoin, à n'importe quel angle, sans jamais avoir à déplacer la machine.

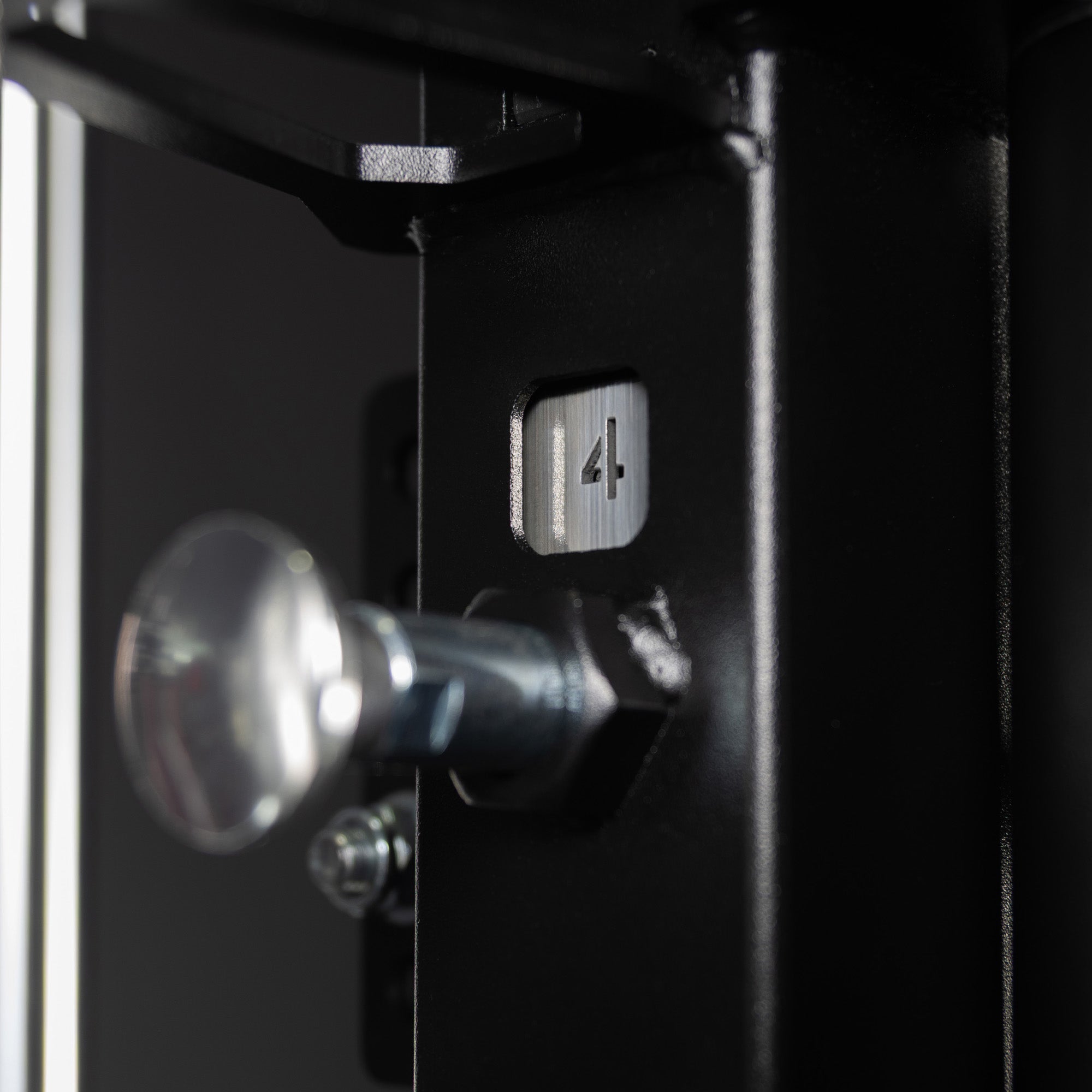

Propulsé par deux colonnes de poids en fonte de 90 kg (198 lb) avec sélection par goupille magnétique de chaque côté, le SD-3200 offre une résistance fluide et constante à chaque mouvement. Les bras pivotants tournent à 360° au niveau de la tête de poulie et offrent 9 positions d'angle vertical — allant de -80° à +80° — pour que vous puissiez reproduire pratiquement n'importe quel angle de machine à poulie que l'on trouve dans un gym commercial. Chaque bras est équipé d'une poulie en aluminium et d'une poignée moletée en aluminium pour une prise en main antidérapante et de première qualité à chaque répétition.

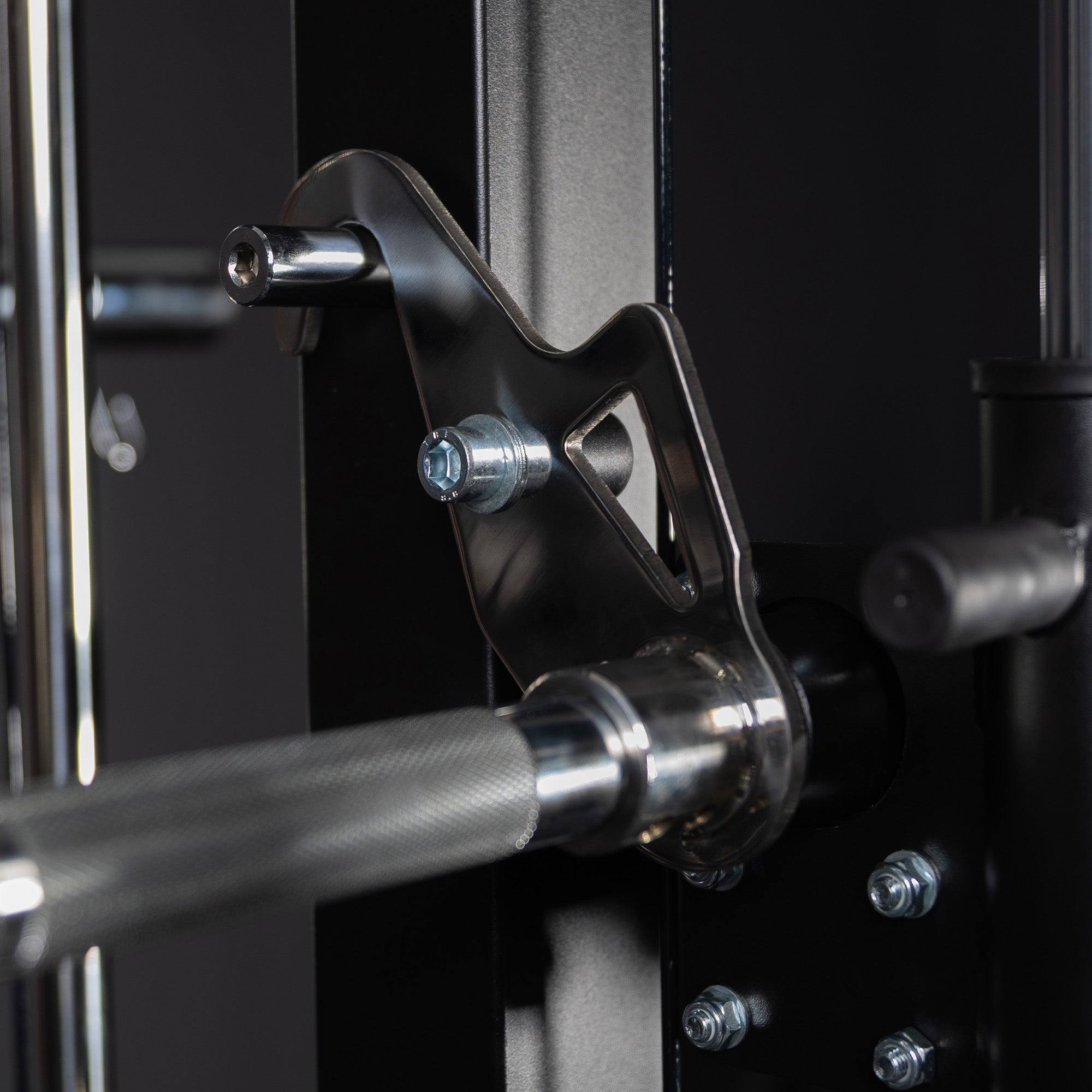

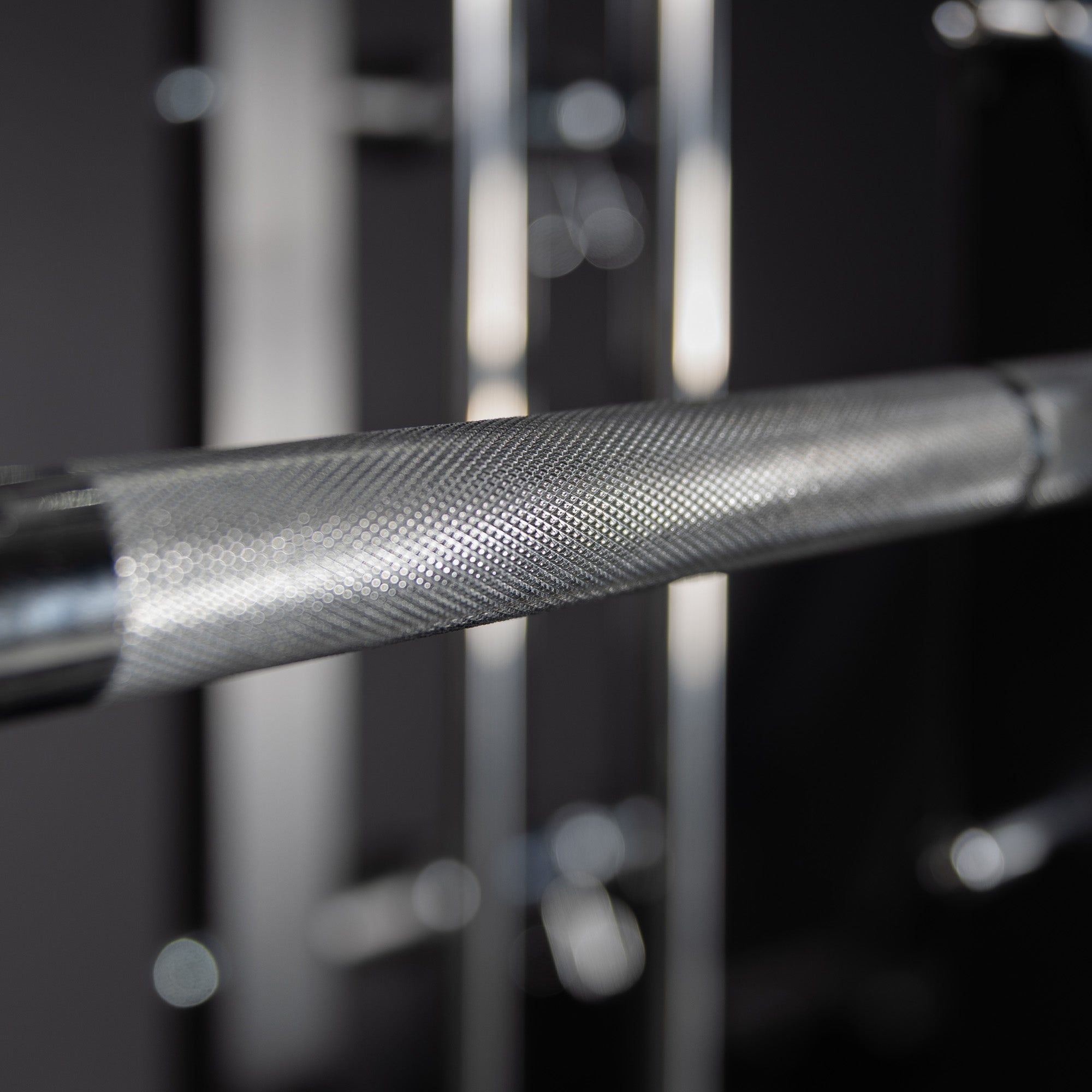

La barre Smith glisse sur des rails de guidage de précision en chrome dur massif, offrant un mouvement linéaire sans friction et d'une durabilité exceptionnelle. Les manchons métalliques chromés acceptent les disques de poids de 1 po et 2 po, et la barre de style olympique moletée assure une prise en main solide pour tous les mouvements de développé, de squat et de tirage (row). La sécurité est assurée par un support de protection pour squat ajustable à 10 positions avec des coussinets en ABS résistants aux chocs — à l'épreuve des impacts, résistants à la déformation et conçus pour retenir de lourdes charges à n'importe quelle hauteur.
Au sommet de l'unité se trouve une barre de traction à angles multiples avec des poignées antidérapantes en HDR et des embouts en alliage d'aluminium, permettant des variations de tractions en pronation, en supination, mixtes, au sternum et à un bras. Chaque point de contact structurel — de la plaque de pied antidérapante à motif de diamants de 5 mm aux boucles à anneau allongées — est conçu pour assurer une stabilité sous de lourdes charges et une durabilité à long terme.

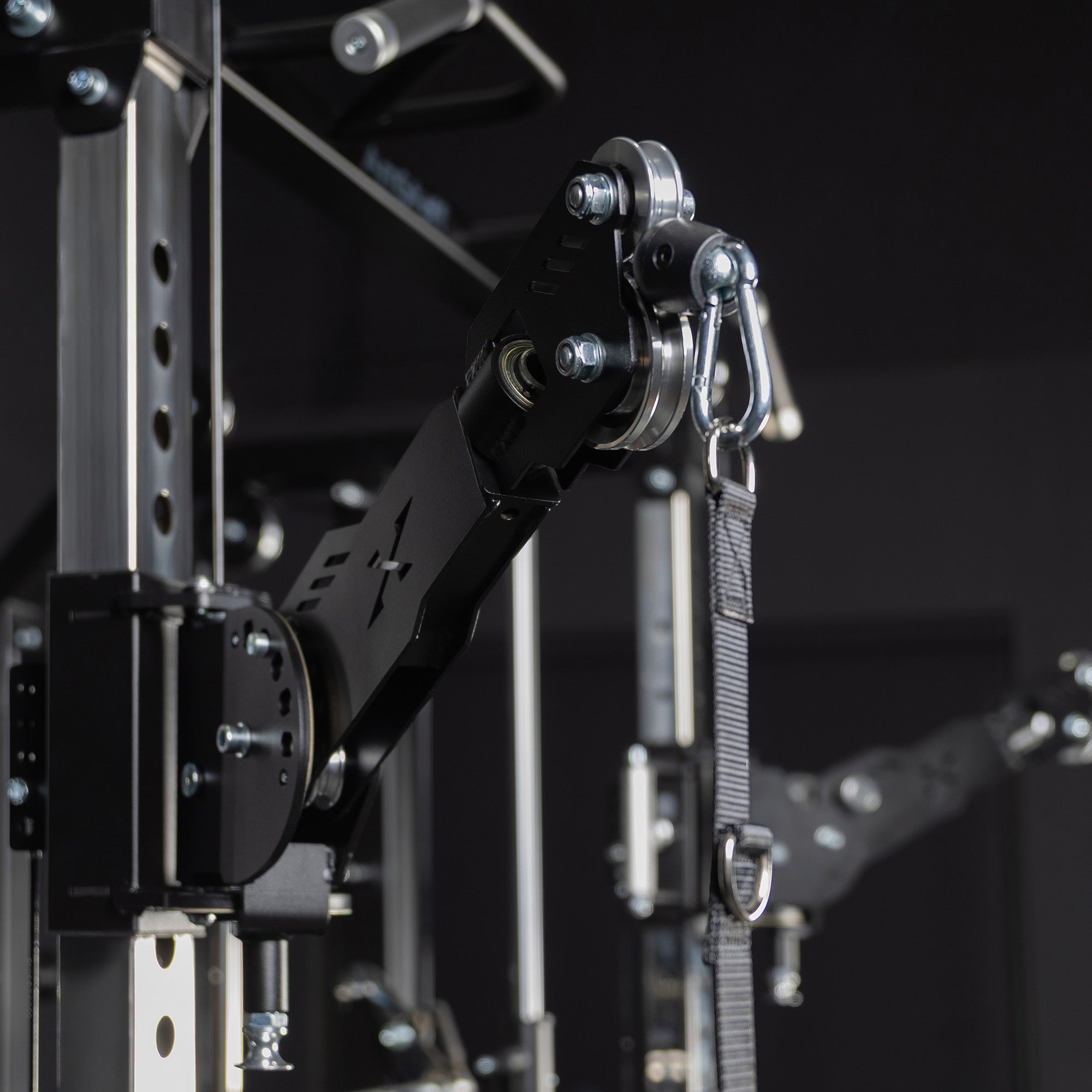

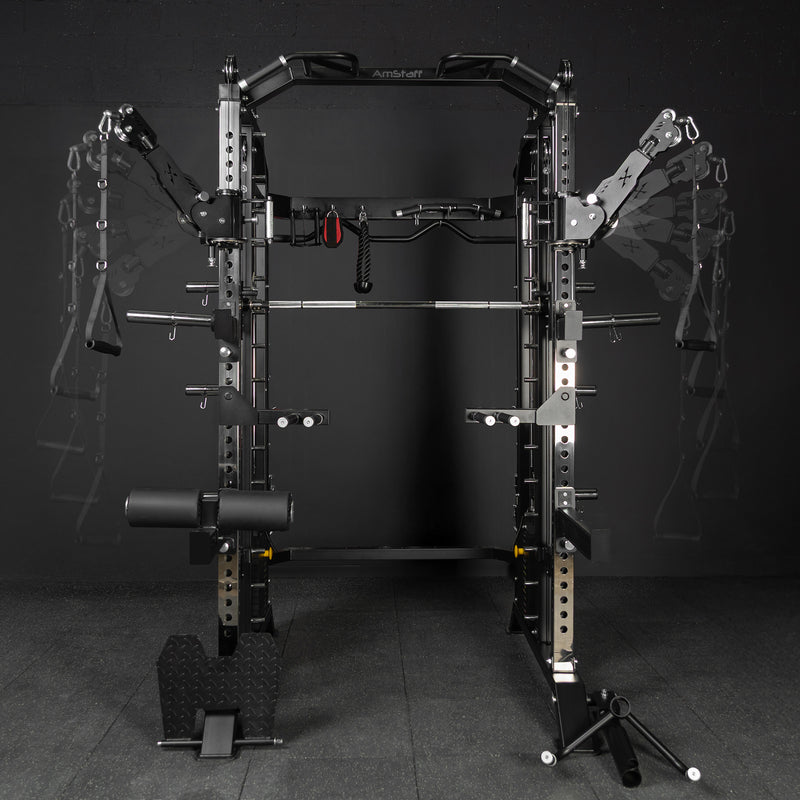

Dual Articulating Arm Cable System
A revolutionary dual cable arm with 360° pulley rotation, 5 vertical adjustments, and 9 horizontal angle positions - so you can replicate any cable angle found in a commercial gym without ever repositioning the machine.
Dual 198 lb Selectorized Weight Stacks

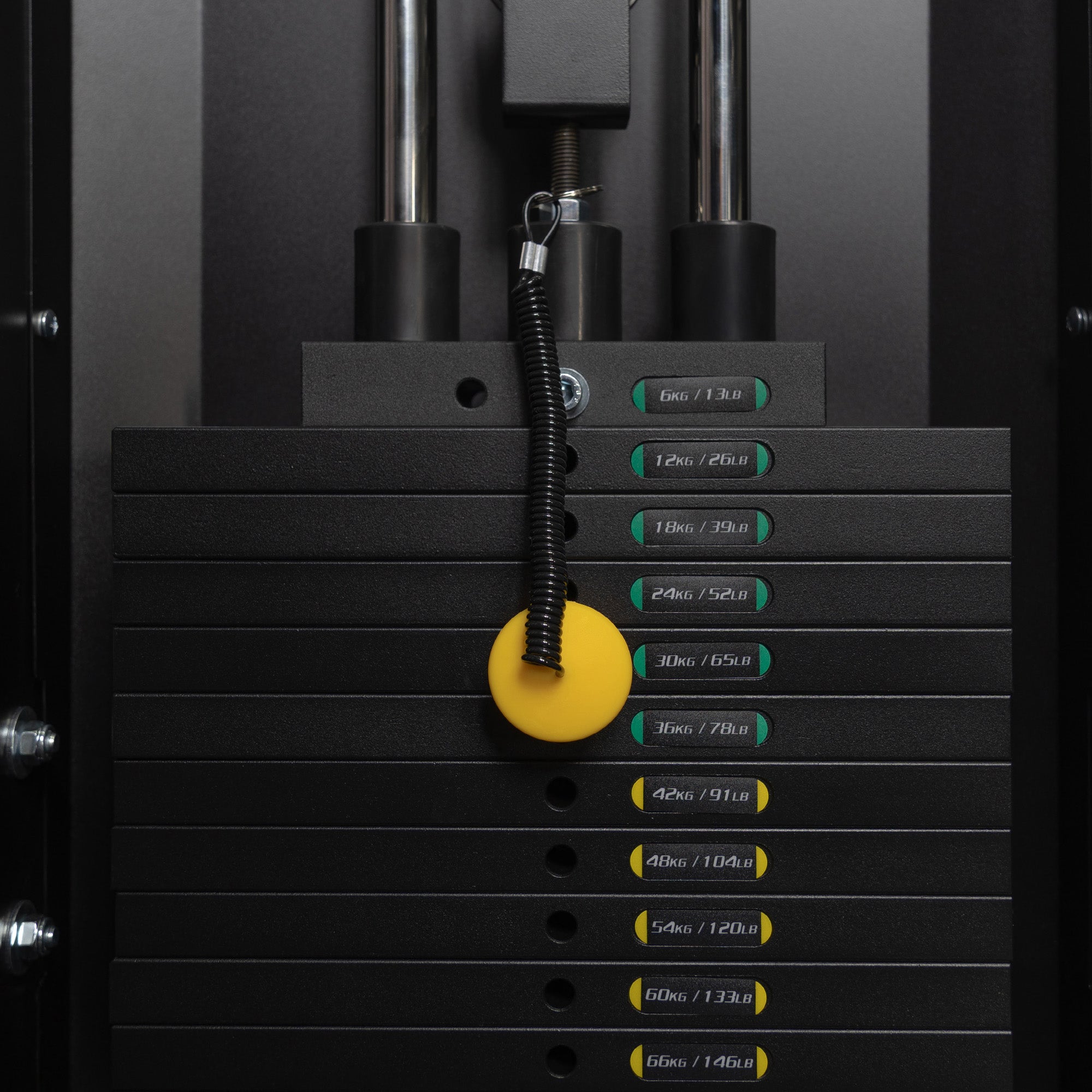

Two independent 90 kg (198 lb) iron weight stacks with magnetic pin selection deliver smooth, consistent resistance on both sides simultaneously - no plate loading, no downtime between exercises.

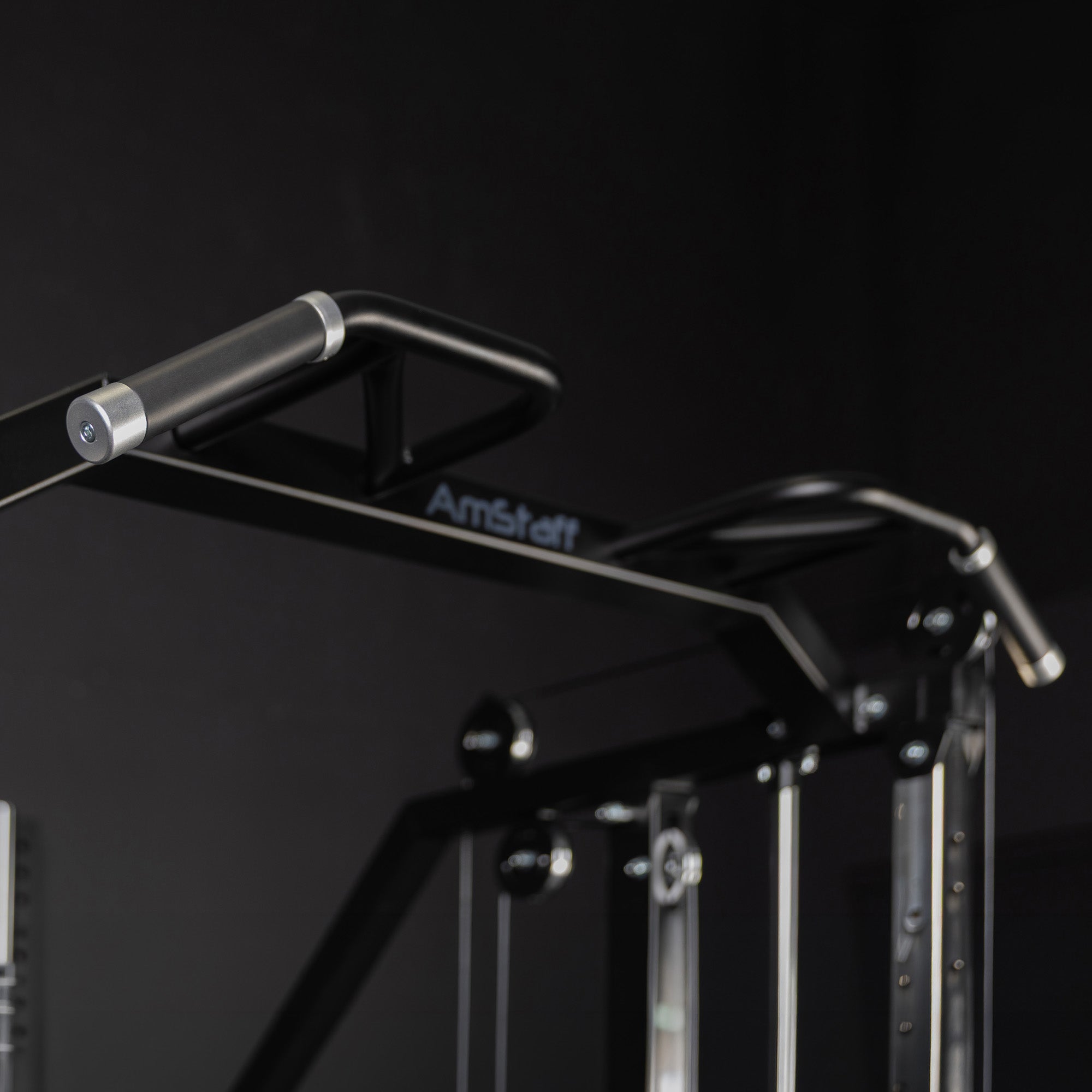

Multi-Grip Pull-up Bar
HDR non-slip grip handles with aluminium alloy end caps support six pull-up variations - overhand, underhand, mixed, sternum, single-hand, and single-arm, all from one integrated overhead station.

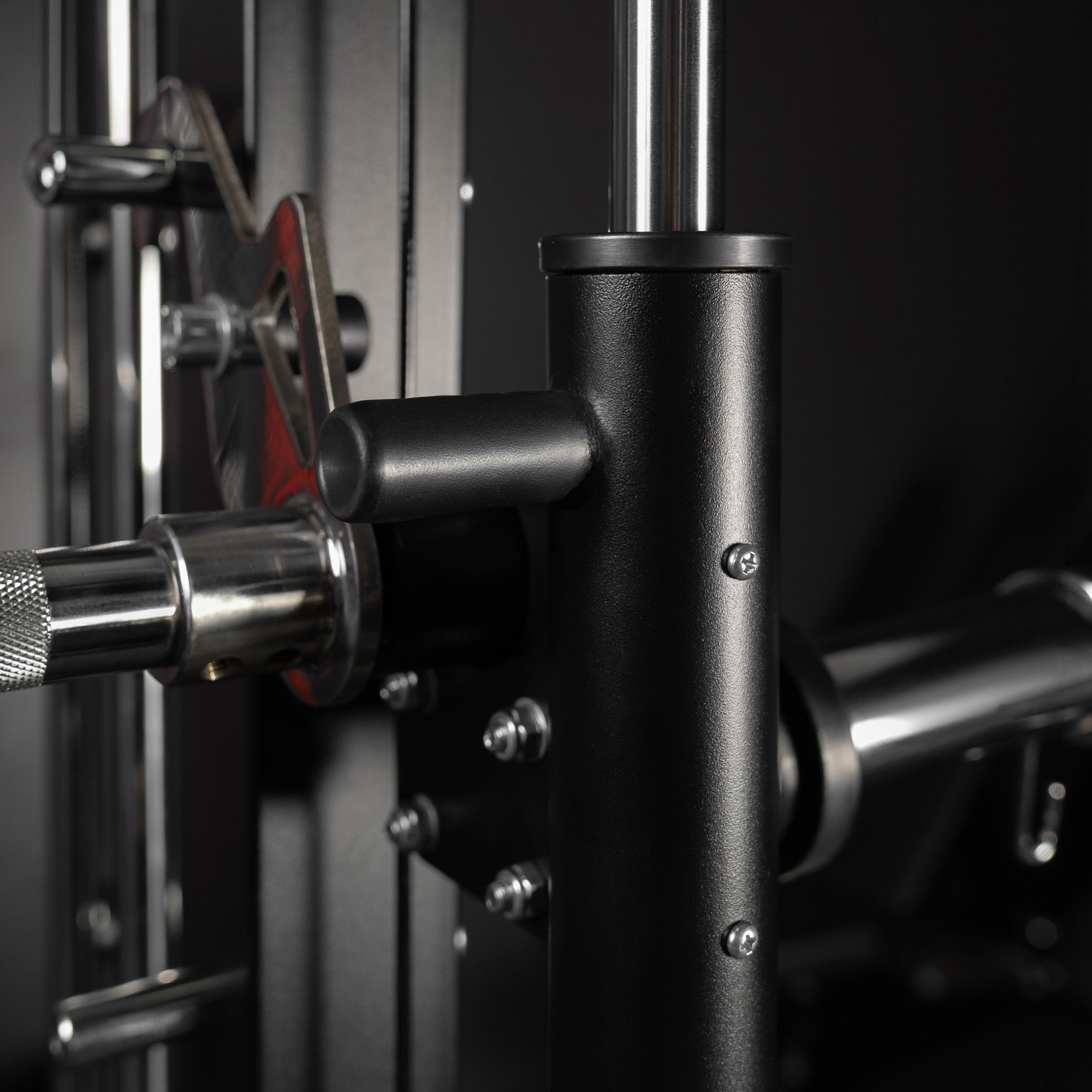

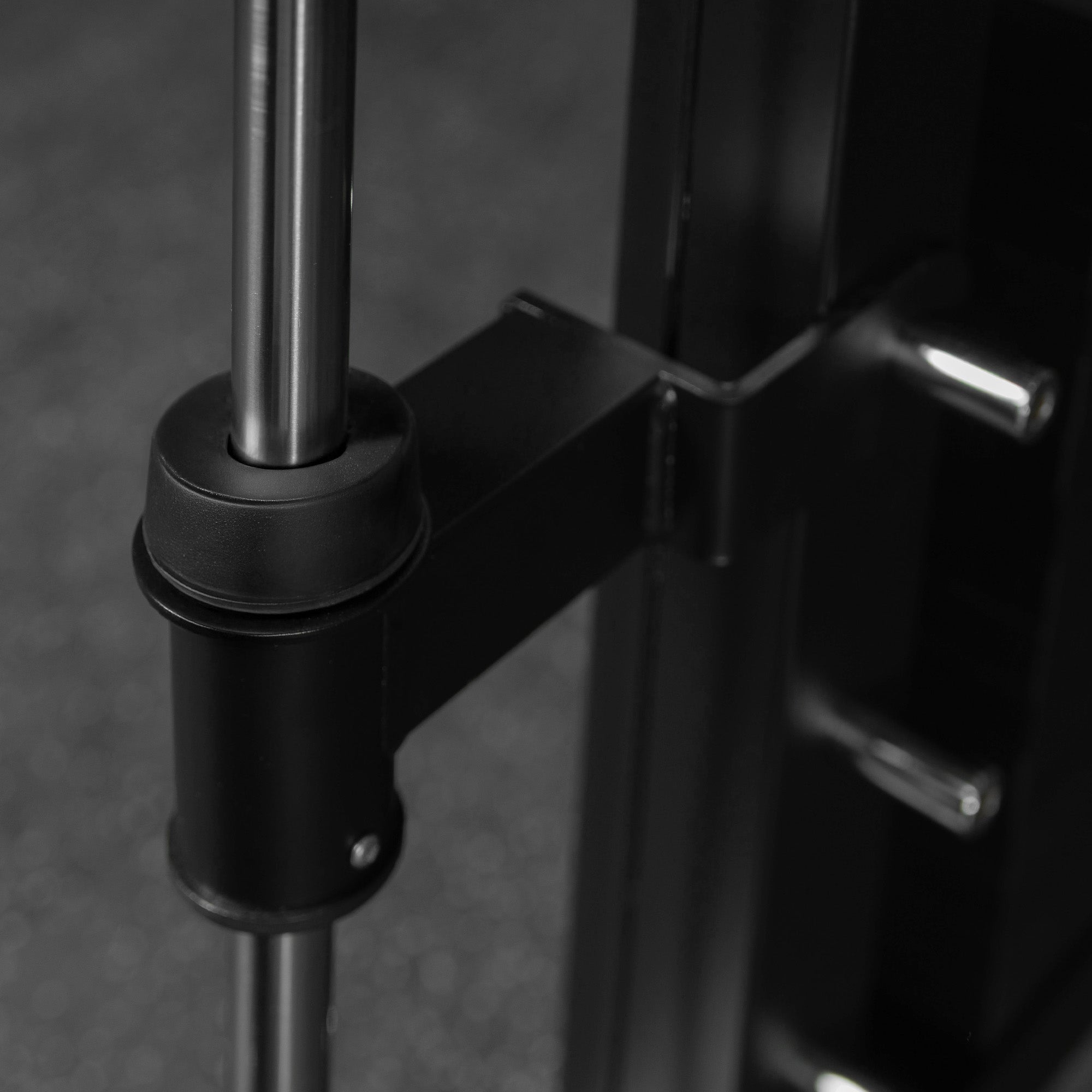

Smith Bar with Precision Linear Bearing
The guided Smith bar rides on precision linear bearings for perfectly smooth, vertical movement on every rep - delivering the control and confidence of a commercial Smith machine at home.

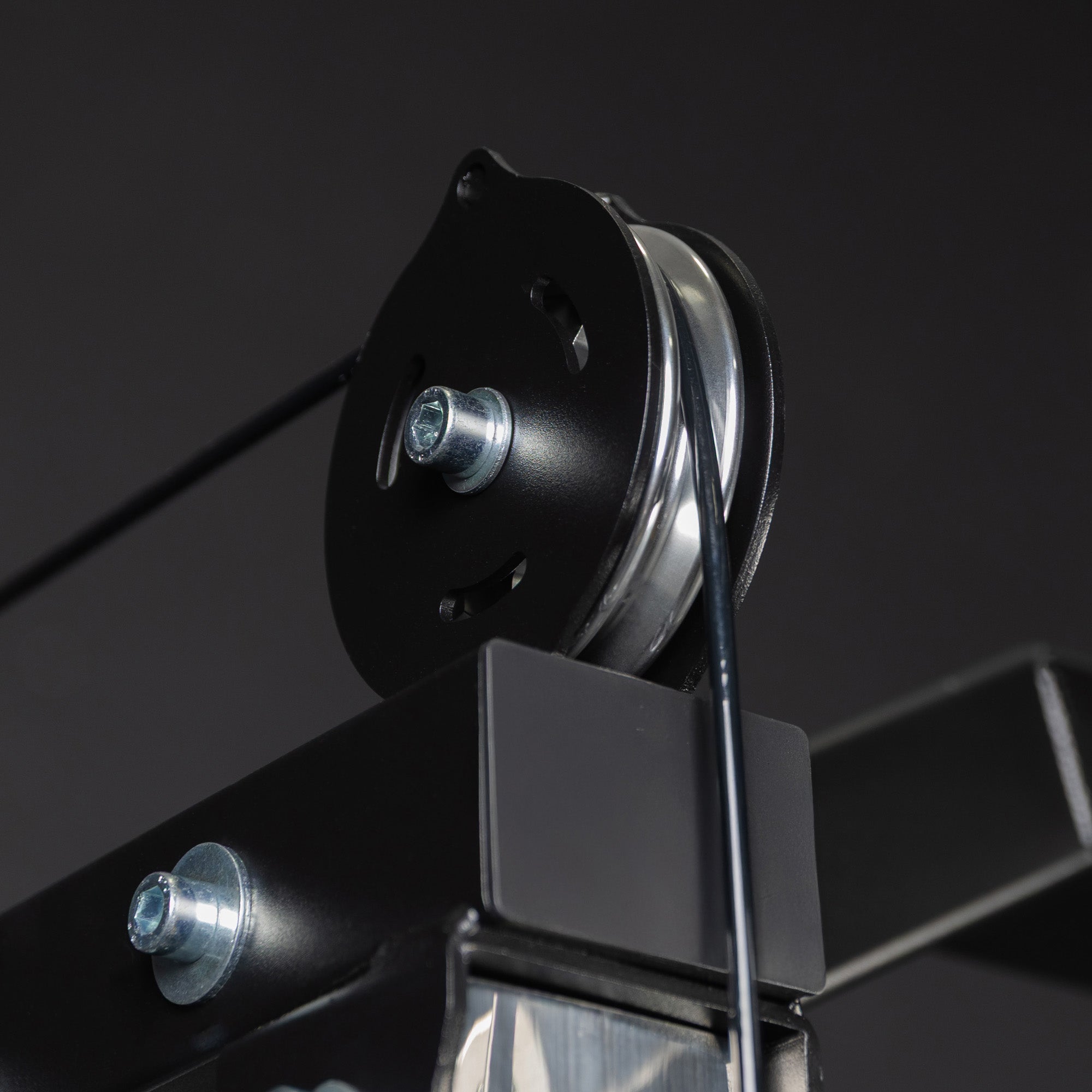

Smooth Aluminum Pulley System
High-quality aluminum pulleys with cross-over swivel design for fluid, natural cable movement.
Enhanced Safety Features
The SD-3200 includes robust safety mechanisms, such as a lockable safety mechanism at any height, ensuring a secure workout experience.
-

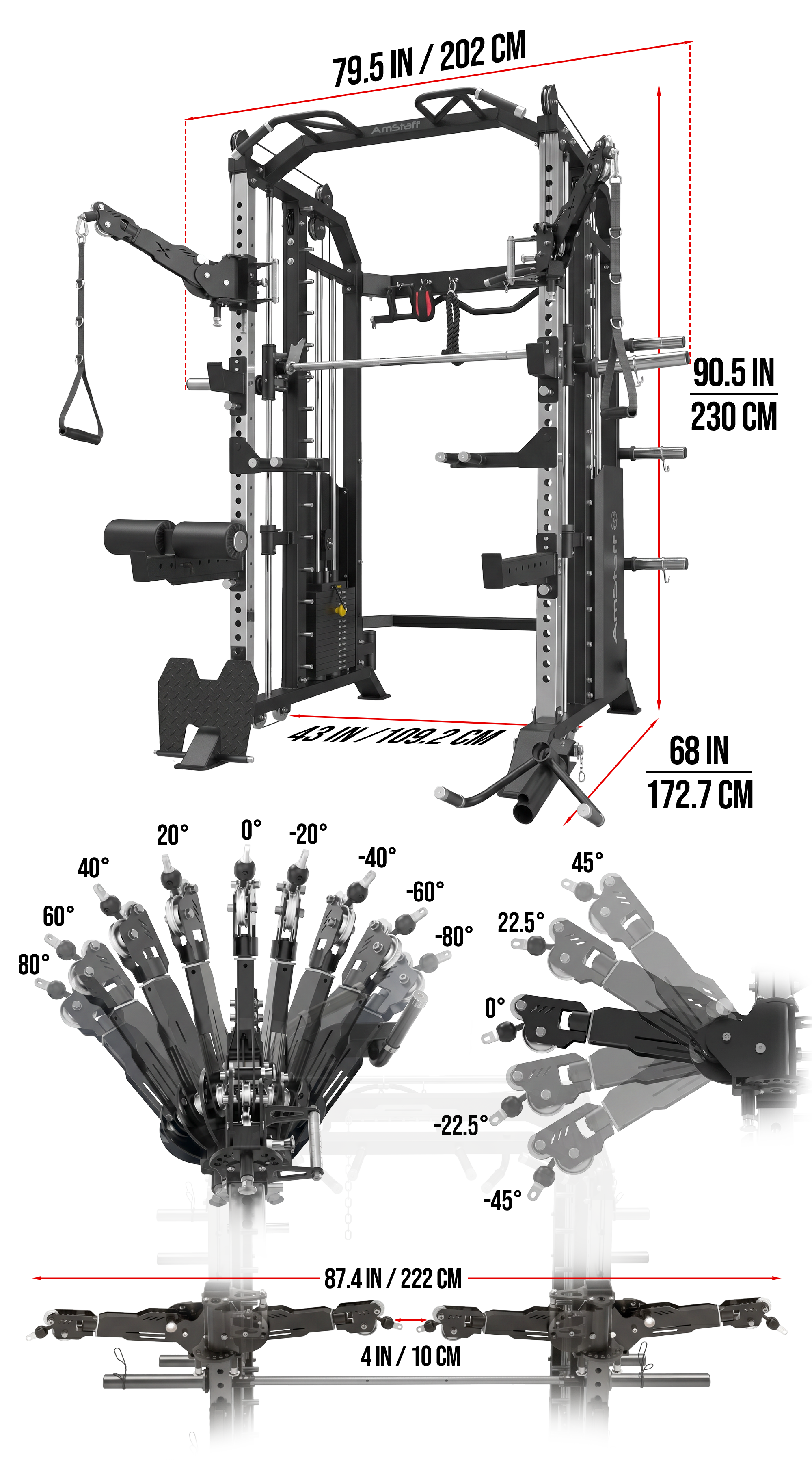

Product Dimensions (W x D x H)79.5 x 68 x 90.5 in / 202 x 172.7 x 230 cm
-
Package Dimensions (W x D x H)89 x 30.7 x 20.9 in / 226.1 x 78 x 53.1 cm
-
Interior Working Rack Width43 in / 109.2 cm
-
Product Weight943.9 lbs / 428 kg
-
Shipping Weight1080 lbs / 489.9 kg
-
Smith Machine Static Weight Capacity600 lbs / 272.1 kg
-
J-Hooks & Safety Bars Static Weight Capacity800 lbs / 362.9 kg
-
Pullup Bar Static Weight Capacity352.7 lbs / 160 kg
-
Smith Bar Sleeves / Weight Pegs Compatibility1 in & 2 in Olympic weight plates
-
Weight Stacks198 lbs x2 / 90 kg x2
-
Weight Stack Increments11 lbs / 5 kg
-
Weight Pegs Length8 in / 20.3 cm
-
Articulating Arm Cable SystemDual independent swing arms with full 360° pulley head rotation
-
Articulating Arm — Vertical Adjustments5 angle positions(45°, 22.5°, 0°, -22.5°, -45°)
-
Articulating Arm — Horizontal Adjustments9 angle positions (80°, 60°, 40°, 20°, 0°, -20°, -40°, -60°, -80°)
-
Articulating Arm — Total Horizontal Span87.4 in / 222 cm
-
Articulating Arm — Arm Length20.5 in / 52.1 cm
-
Number of Articulating Arms Height Adjustments22
-
Cable Travel Distance89.5 in / 227.3 cm
-
Pulley Ratio2:1
-
Pulley MaterialAluminum
-
Upright Tube Profile2" x 2.75"
-
Holes Size1" / 26 mm
-
Holes Spacing2" / 50 mm
-
Material11-gauge steel
-
FinishPowder Coated / Chrome Plated
-
WarrantyLimited Lifetime (Frame), 180 days (Pulley Wheels & Cables)
